Home › DIY Pick and Place Head › DIY Pick and Place Head(Double-Head) Module DH1

DIY SMT Head Module DH1A (Double-Head) - Double-Head Pick and Place Head Module DH1A(Z-axis Nema 17 Motor(42x42x40mm) + Juki Nozzle (Green / Black) + Nozzle Holder + R-axis Nema 11 Motor(28x28x34mm) + Double-Head Spring type Bracket Kit)

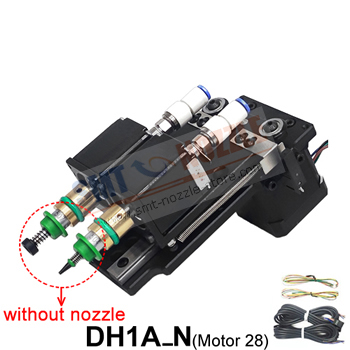

Double-Head Pick and Place Head Module DH1A Move Up and Down On Z-axis
  • Price: $202.00 / set
  • The Color of Juki Nozzles:

    The first nozzle is:

    The second nozzle is:

    Quantity:

  • Free Shipping ! 1 Year Warranty !
You can also buy a set of Juki NozzlesA Set of Juki Suction Nozzle 500, 501, 502, 503, 504, 505, 506, 507, 508, 509, 510, 511, 512, 513, 514, 515
You can also buy a set of Black Juki NozzlesA Set of Black Juki Suction Nozzle 500, 501, 502, 503, 504, 505, 506, 507, 508, 509, 510, 511
You can also buy a set of White Juki NozzlesA Set of White Juki Suction Nozzle 500, 501, 502, 503, 504, 505, 506, 507, 508
You can also buy DIY Pick and Place Head Module DH2ADIY Pick and Place Head Module DH2A with Z-axis Motor(42x42x40mm), R-axis Motor(28x28x34mm)
You can also buy DIY Pick and Place Head Module DH3ADIY Pick and Place Head Module DH3A with Z-axis Motor(42x42x40mm), R-axis Motor(28x28x34mm)
You can also buy DIY Pick and Place Head Module DH4ADIY Pick and Place Head Module DH4A with Z-axis Motor(42x42x40mm), R-axis Motor(28x28x34mm)
You can also buy Juki Nozzle HolderSMT Nozzle Holders used for Juki Pick-and-place Machine
Product Features

DIY Pick and Place Head(Double-Head) Assembly

Double-Head Pick and Place Head Module DH1 components, including: 1 x Z-axis Nema 17 Stepper Motor(42x42x40mm), 2 x Juki Nozzle 500/501/502/503/504/505/506/507/508(Green / Black), 2 x Nozzle Holder, 2 x R-axis Nema 11 Hollow Shaft Stepper Motor(28x28x34mm), 2 x ABS Rotary Joint Connector, 2 x Motor Wire, 1 x Double-Head Spring type Bracket Kit, 2 x Sensor Wire.

- Each set of placement head is equipped with a conventional Nozzle (choose one of 500-508(Green / Black))
- Max moving range of Z-axis: 20mm
- R-axis rotary: 800/min
- R-axis spacing: 30mm
- The Nozzle can be replaced quickly and easily.
- Best Concentricity
- The Nozzle can be controlled to rotate freely 360°.
