DIY SMT Head Module DH2A (Double-Head) - Z-axis Nema 17 Motor(42x42x40mm) + Replacements for Juki 500-Series Nozzles (Green / Black) + Nozzle Holder + R-axis Nema 11 Motor(28x28x34mm) + Double-Head Spring type Bracket Kit + Motor Driver

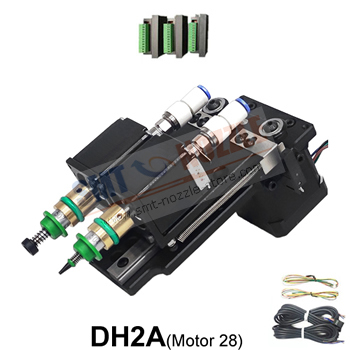

Double-Head Pick and Place Head Module DH2A Move Up and Down On Z-axis
  • Price: $339.00 / set
  • The Color of SMT Nozzles:

    The first nozzle is:

    The second nozzle is:

    Rotary Joint:



    Quantity:

  • Free Shipping ! 1 Year Warranty !

DIY SMT Head Module DH2A_N without SMT Nozzle (Double-Head) - Z-axis Nema 17 Motor(42x42x40mm) + Nozzle Holder + R-axis Nema 11 Motor(28x28x34mm) + Double-Head Spring type Bracket Kit + Motor Driver

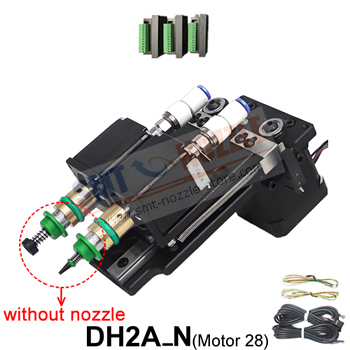

Double-Head Pick and Place Head Module DH2A_N without SMT Nozzle Move Up and Down On Z-axis
  • Price: $329.00 / set
  • Rotary Joint:



    Quantity:

  • Free Shipping ! 1 Year Warranty !
You can also buy DIY Pick and Place Head Module DH1ADIY Pick and Place Head Module DH1A with Z-axis Motor(42x42x40mm), R-axis Motor(28x28x34mm)
You can also buy DIY Pick and Place Head Module DH3ADIY Pick and Place Head Module DH3A with Z-axis Motor(42x42x40mm), R-axis Motor(28x28x34mm)
You can also buy DIY Pick and Place Head Module DH4ADIY Pick and Place Head Module DH4A with Z-axis Motor(42x42x40mm), R-axis Motor(28x28x34mm)
You can also buy Nozzle Holder for Juki MounterSMT Nozzle Holders used for Juki Pick-and-place Machine
Product Features

DIY Pick and Place Head(Double-Head) Assembly

Double-Head Pick and Place Head Module DH2 components, including: 1 x Z-axis Nema 17 Stepper Motor(42x42x40mm), 2 x Replacements for Juki 500-Series Nozzles (Green / Black), 2 x Nozzle Holder, 2 x R-axis Nema 11 Hollow Shaft Stepper Motor(28x28x34mm), 2 x ABS Rotary Joint Connector, 1x (4mm/6mm) KSH Trachea Rotary Joint M5, 2 x Motor Wire, 1 x Double-Head Spring type Bracket Kit, 2 x Sensor Wire, 3 x Motor Driver.

- Each set of placement head is equipped with a conventional Nozzle (choose one of 500/501/502/503/504/505/506/507/508(Green / Black))
- Max moving range of Z-axis: 20mm
- R-axis rotary: 800/min
- R-axis spacing: 30mm
- The Nozzle can be replaced quickly and easily.
- Best Concentricity
- The Nozzle can be controlled to rotate freely 360°.
