Home › DIY Pick and Place Head › DIY Pick and Place Head Module 3M

DIY Pick and Place Head Module 3M - Z-axis Nema 17 Motor(42x42x40mm) + Replacements for Juki 500-Series Nozzles (Green / Black) + Nozzle Holder + R-axis Nema 11 Motor(28x28x34mm) + ABS Rotary Joint Connector + 4mm/6mm KSH Trachea Rotary Joint M5 + Sensor Wire + Spring type Bracket Kit + Vacuum Ejector ASSY

DIY Pick and Place Head Module 3M Move Up and Down On Z-axis
  • Price: $183.50 / set
  • The Color of SMT Nozzles:



    SMT Head Sets & Kits:



    Rotary Joint:



    Quantity:

  • Free Shipping ! 1 Year Warranty !

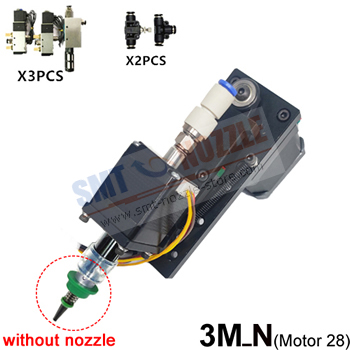

DIY Pick and Place Head Module 3M_N without SMT Nozzle - Z-axis Nema 17 Motor(42x42x40mm) + Nozzle Holder + R-axis Nema 11 Motor(28x28x34mm) + ABS Rotary Joint Connector + 4mm/6mm KSH Trachea Rotary Joint M5 + Sensor Wire + Spring type Bracket Kit + Vacuum Ejector ASSY

DIY Pick and Place Head Module 3M_N without SMT Nozzle Move Up and Down On Z-axis
  • Price: $178.50 / set
  • Rotary Joint:



    Quantity:

  • Free Shipping ! 1 Year Warranty !
You can also buy DIY Pick and Place Head Module 1MDIY Pick and Place Head Module 1M with Z-axis Motor(42x42x40mm), R-axis Motor(28x28x34mm)
You can also buy DIY Pick and Place Head Module 2MDIY Pick and Place Head Module 2M with Z-axis Motor(42x42x40mm), R-axis Motor(28x28x34mm)
You can also buy DIY Pick and Place Head Module 4MDIY Pick and Place Head Module 4M with Z-axis Motor(42x42x40mm), R-axis Motor(28x28x34mm)
You can also buy Nozzle Holder for Juki MounterSMT Nozzle Holders used for Juki Pick-and-place Machine
Product Features

DIY Pick and Place Head Assembly

DIY Pick and Place Head Module 3M components, including: Z-axis Nema 17 Stepper Motor(42x42x40mm), Replacements for Juki 500-Series Nozzles (Green / Black), Nozzle Holder, R-axis Nema 11 Hollow Shaft Stepper Motor(28x28x34mm), ABS Rotary Joint Connector, (4mm/6mm) KSH Trachea Rotary Joint M5, Spring type Bracket Kit, Motor Wire, Sensor Wire, Vacuum Ejector ASSY.

- Each set of placement head is equipped with a conventional Nozzle (choose one of 500/501/502/503/504/505/506/507/508(Green / Black))
- Max moving range of Z-axis: 20mm
- R-axis Rotary: 800/min
- The Nozzle can be replaced quickly and easily.
- Best Concentricity
- The Nozzle can be controlled to rotate freely 360°.
