• DIY Pick and Place Head Module 4M for Juki Nozzle 500/501/502/503/504/505/506/507/508
  • View Cart
  • Contact US
Categories
HomeDIY Pick and Place Head › DIY Pick and Place Head Module 4M

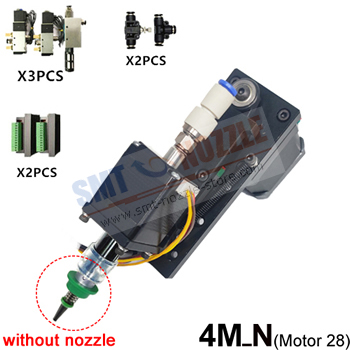

DIY Pick and Place Head Module 4M (Z-axis Nema 17 Motor(42x42x40mm) + Juki Nozzle (Green / Black) + Nozzle Holder + R-axis Nema 11 Motor(28x28x34mm) + ABS Rotary Joint Connector + 4mm KSH Trachea Rotary Joint M5 + Sensor Wire + Spring type Bracket Kit + Motor Driver + Vacuum Ejector ASSY)

DIY Pick and Place Head Module 4M Move Up and Down On Z-axis
  • Price: $150.00 / set
  • The Color of Juki Nozzles:

    The first nozzle is:

    Quantity:

  • Free Shipping ! 1 Year Warranty !
You can also buy a set of Juki NozzlesA Set of Juki Suction Nozzle 500, 501, 502, 503, 504, 505, 506, 507, 508, 509, 510, 511, 512, 513, 514, 515
You can also buy a set of Black Juki NozzlesA Set of Black Juki Suction Nozzle 500, 501, 502, 503, 504, 505, 506, 507, 508, 509, 510, 511
You can also buy a set of White Juki NozzlesA Set of White Juki Suction Nozzle 500, 501, 502, 503, 504, 505, 506, 507, 508
You can also buy DIY Pick and Place Head Module 1MDIY Pick and Place Head Module 1M with Z-axis Motor(42x42x40mm), R-axis Motor(28x28x34mm)
You can also buy DIY Pick and Place Head Module 2MDIY Pick and Place Head Module 2M with Z-axis Motor(42x42x40mm), R-axis Motor(28x28x34mm)
You can also buy DIY Pick and Place Head Module 3MDIY Pick and Place Head Module 3M with Z-axis Motor(42x42x40mm), R-axis Motor(28x28x34mm)
You can also buy Juki Nozzle HolderSMT Nozzle Holders used for Juki Pick-and-place Machine
Product Features

DIY Pick and Place Head Assembly

DIY Pick and Place Head Module 4M components, including: Z-axis Nema 17 Stepper Motor(42x42x40mm), Juki Nozzle 500/501/502/503/504/505/506/507/508(Green / Black), Nozzle Holder, R-axis Nema 11 Hollow Shaft Stepper Motor(28x28x34mm), ABS Rotary Joint Connector, Spring type Bracket Kit, Motor Wire, Sensor Wire, Motor Driver, Vacuum Ejector ASSY.

- Each set of placement head is equipped with a conventional Nozzle (choose one of 500-508(Green / Black))
- Max moving range of Z-axis: 20mm
- R-axis Rotary: 800/min
- The Nozzle can be replaced quickly and easily.
- Best Concentricity
- The Nozzle can be controlled to rotate freely 360°.
