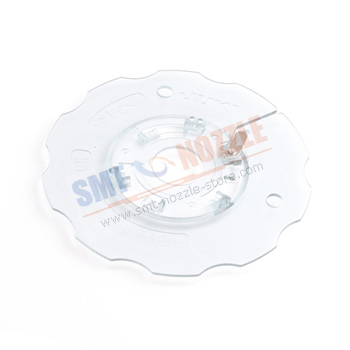

Juki 40081851 SMT Feeder Tape Holder ASM - Juki CTFR 8mm Feeder Plastic Cover

SMT Feeding Method:

- Mount tape onto holder, ensure cover layer tape passes through component feeding guide.
- Open safe lock, open tape guide.
- Peel off cover layer tape and ensure carrier sits onto pin in sprocket.
- Press and open safety lock, colse tape guide and ensure safety lock.
- Pass the cover layer tape over pulley and between take up gear tooth. Ensure tape is securely latch onto gear, close cover.
- Manually wind take up gear to secure and tighten cover layer tape, pass excess tape into storage box.
