• Double-Head Pick and Place Head Module DH1 for Juki Nozzle 500/501/502/503/504/505/506/507/508
  • View Cart
  • Contact US

Free Shipping ! 1 Year Warranty !

Categories
Home › DIY Pick and Place Head › DIY Pick and Place Head(Double-Head) Set DH1

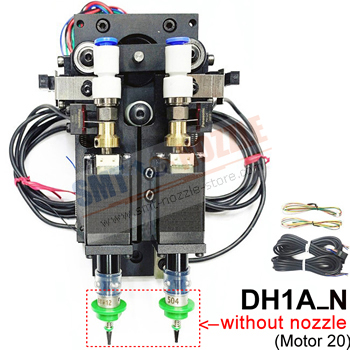

DIY SMT Head Module DH1A (Double-Head) - Double-Head Pick and Place Head Module DH1A(Z-axis Nema 17 Motor(42x42x40mm) + Juki Nozzle (Green / Black) + Nozzle Holder A (Black) + R-axis Nema 8 Motor(20x20x38mm) + Double-Head Spring type Bracket Kit)

Double-Head Pick and Place Head Module DH1A Move Up and Down On Z-axis
  • Price: $268.00 / set
  • The Color of Juki Nozzles:

    The first nozzle is:

    The second nozzle is:

    Quantity:

  • Free Shipping ! 1 Year Warranty !

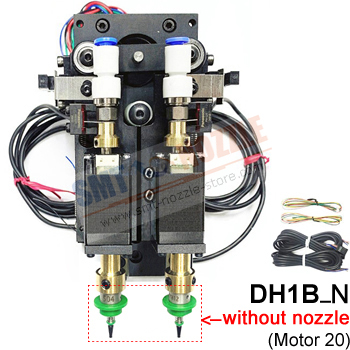

DIY SMT Head Module DH1B (Double-Head) - Double-Head Pick and Place Head Module DH1B(Z-axis Nema 17 Motor(42x42x40mm) + Juki Nozzle (Green / Black) + Nozzle Holder B (Gold) + R-axis Nema 8 Motor(20x20x38mm) + Double-Head Spring type Bracket Kit)

Double-Head Pick and Place Head Module DH1B Move Up and Down On Z-axis
  • Price: $273.00 / set
  • The Color of Juki Nozzles:

    The first nozzle is:

    The second nozzle is:

    Quantity:

  • Free Shipping ! 1 Year Warranty !
You can also buy DIY Pick and Place Head Module DH2ADIY Pick and Place Head Module DH2A with Z-axis Motor(42x42x40mm), R-axis Motor(20x20x38mm)
You can also buy DIY Pick and Place Head Module DH3ADIY Pick and Place Head Module DH3A with Z-axis Motor(42x42x40mm), R-axis Motor(20x20x38mm)
You can also buy DIY Pick and Place Head Module DH4ADIY Pick and Place Head Module DH4A with Z-axis Motor(42x42x40mm), R-axis Motor(20x20x38mm)
You can also buy DIY Pick and Place Head Set 1ADIY Pick and Place Head Set 1A
You can also buy DIY Pick and Place Head Set 2ADIY Pick and Place Head Set 2A
You can also buy DIY Pick and Place Head Set 3ADIY Pick and Place Head Set 3A
You can also buy DIY Pick and Place Head Set 4ADIY Pick and Place Head Set 4A
You can also buy DIY Pick and Place Head Set 5ADIY Pick and Place Head Set 5A
You can also buy DIY Pick and Place Head Set 6ADIY Pick and Place Head Set 6A
You can also buy DIY Pick and Place Head Set 7ADIY Pick and Place Head Set 7A
You can also buy DIY Pick and Place Head Set 8ADIY Pick and Place Head Set 8A
You can also buy DIY Pick and Place Head Set 9ADIY Pick and Place Head Set 9A
You can also buy DIY Pick and Place Head Set 10ADIY Pick and Place Head Set 10A
You can also buy DIY Pick and Place Head Set 11ADIY Pick and Place Head Set 11A
You can also buy DIY Pick and Place Head Set 12ADIY Pick and Place Head Set 12A
You can also buy Four SMT Head Module FH1M Juki Nozzle - Motor 20(Four-Head) DIY Pick and Place Head Module FH1M(Z-axis Nema 17 Motor(42x42x40mm) + Juki Nozzle (Green / Black) + Nozzle Holder + R-axis Nema 8 Motor(20x20x38mm) + Four-Head Spring type Bracket Kit)
You can also buy Four SMT Head Module FH2M Juki Nozzle - Motor 20(Four-Head) DIY Pick and Place Head Module FH2M(Z-axis Nema 17 Motor(42x42x40mm) + Juki Nozzle (Green / Black) + Nozzle Holder + R-axis Nema 8 Motor(20x20x38mm) + Four-Head Spring type Bracket Kit + Motor Driver)
You can also buy Four SMT Head Module FH3M Juki Nozzle - Motor 20(Four-Head) DIY Pick and Place Head Module FH3M(Z-axis Nema 17 Motor(42x42x40mm) + Juki Nozzle (Green / Black) + Nozzle Holder + R-axis Nema 8 Motor(20x20x38mm) + Four-Head Spring type Bracket Kit + Vacuum Ejector ASSY)
You can also buy Four SMT Head Module FH4M Juki Nozzle - Motor 20(Four-Head) DIY Pick and Place Head Module FH4M(Z-axis Nema 17 Motor(42x42x40mm) + Juki Nozzle (Green / Black) + Nozzle Holder A + R-axis Nema 8 Motor(20x20x38mm) + Four-Head Spring type Bracket Kit + Motor Driver + Vacuum Ejector ASSY)
Product Features

DIY Pick and Place Head(Double-Head) Assembly

Double-Head Pick and Place Head Module DH1 components, including: 1 x Z-axis Nema 17 Stepper Motor(42x42x40mm), 2 x Juki Nozzle 500/501/502/503/504/505/506/507/508(Green / Black), 2 x Nozzle Holder (A / B), 2 x R-axis Nema 8 Hollow Shaft Stepper Motor(20x20x38mm), 2 x ABS Rotary Joint Connector, 2 x Motor Wire, 1 x Double-Head Spring type Bracket Kit, 2 x Sensor Wire.

- Each set of placement head is equipped with a conventional Nozzle (choose one of 500-508(Green / Black))
- Max moving range of Z-axis: 20mm
- R-axis rotary: 600/min
- R-axis spacing: 30mm
- The Nozzle can be replaced quickly and easily.
- Best Concentricity
- The Nozzle can be controlled to rotate freely 360°.
